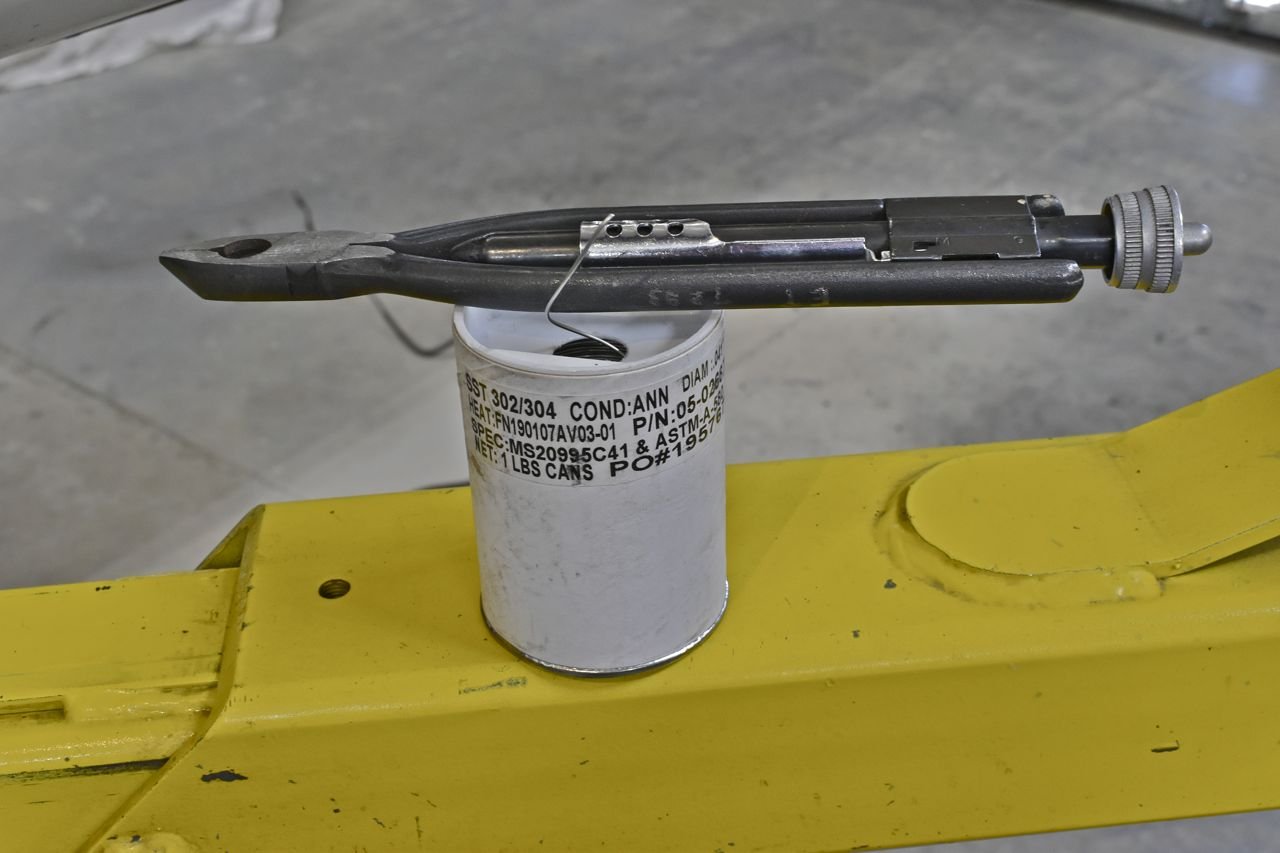

This the stainless safety wire and special pliers I use to do the twist.

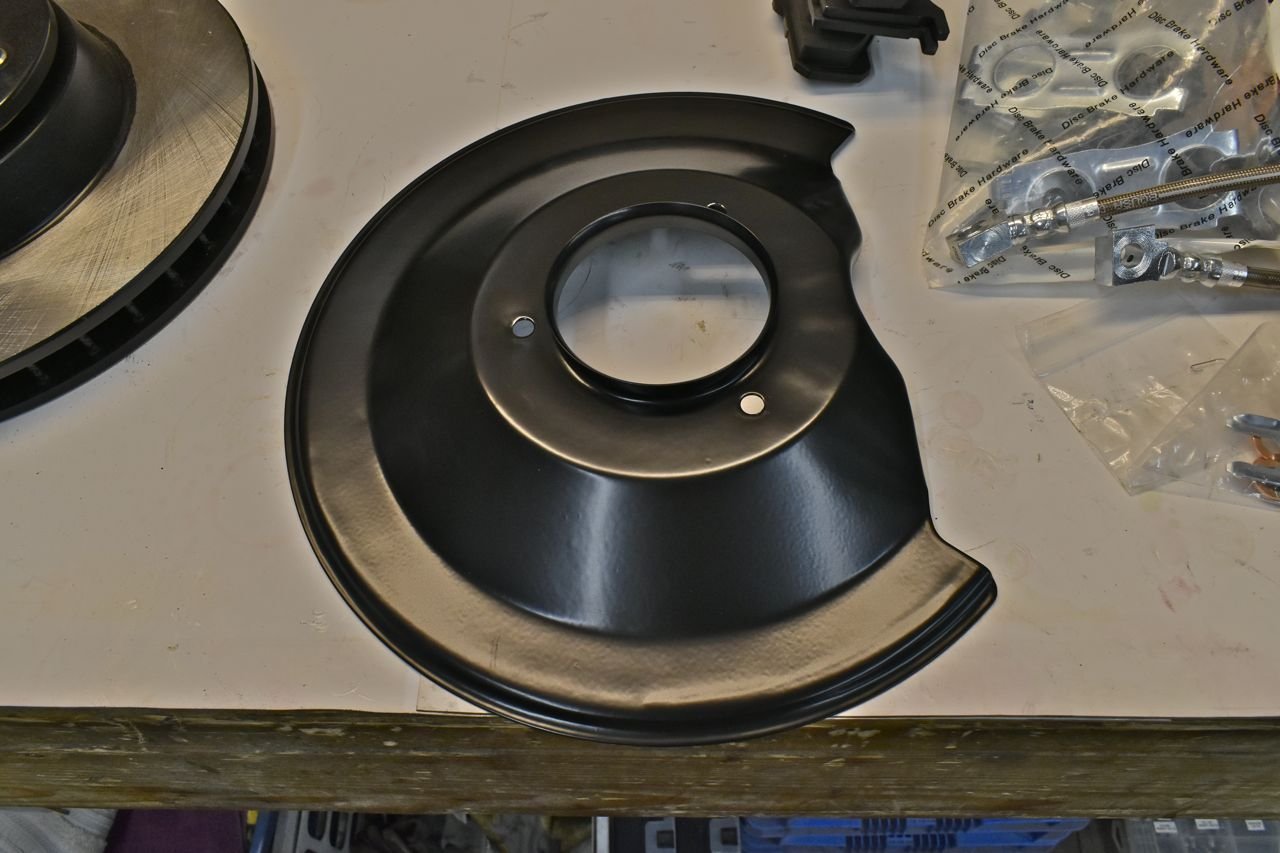

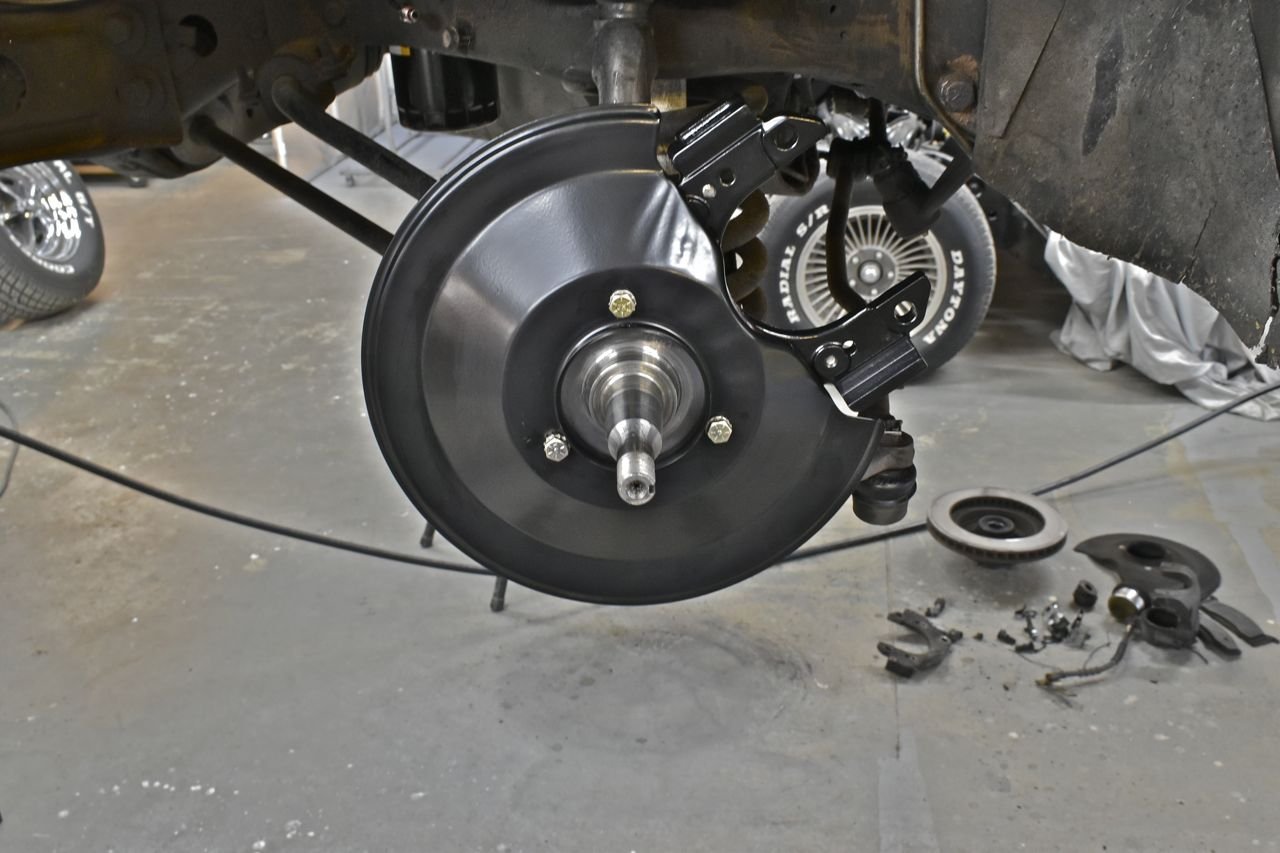

I powder coated the dust shields.

I used a little RTV between the spindle and the splash shield since I don't have the gaskets and didn't feel like making any.

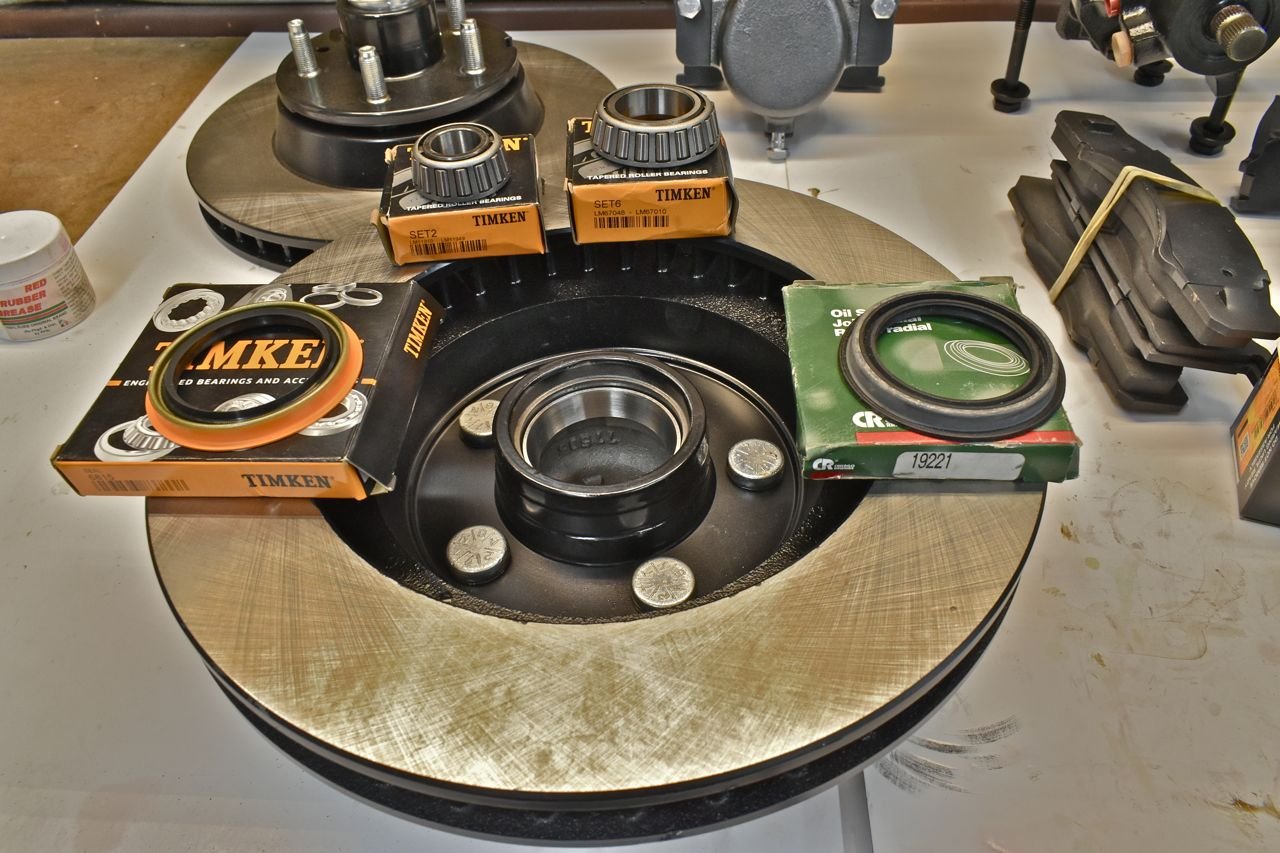

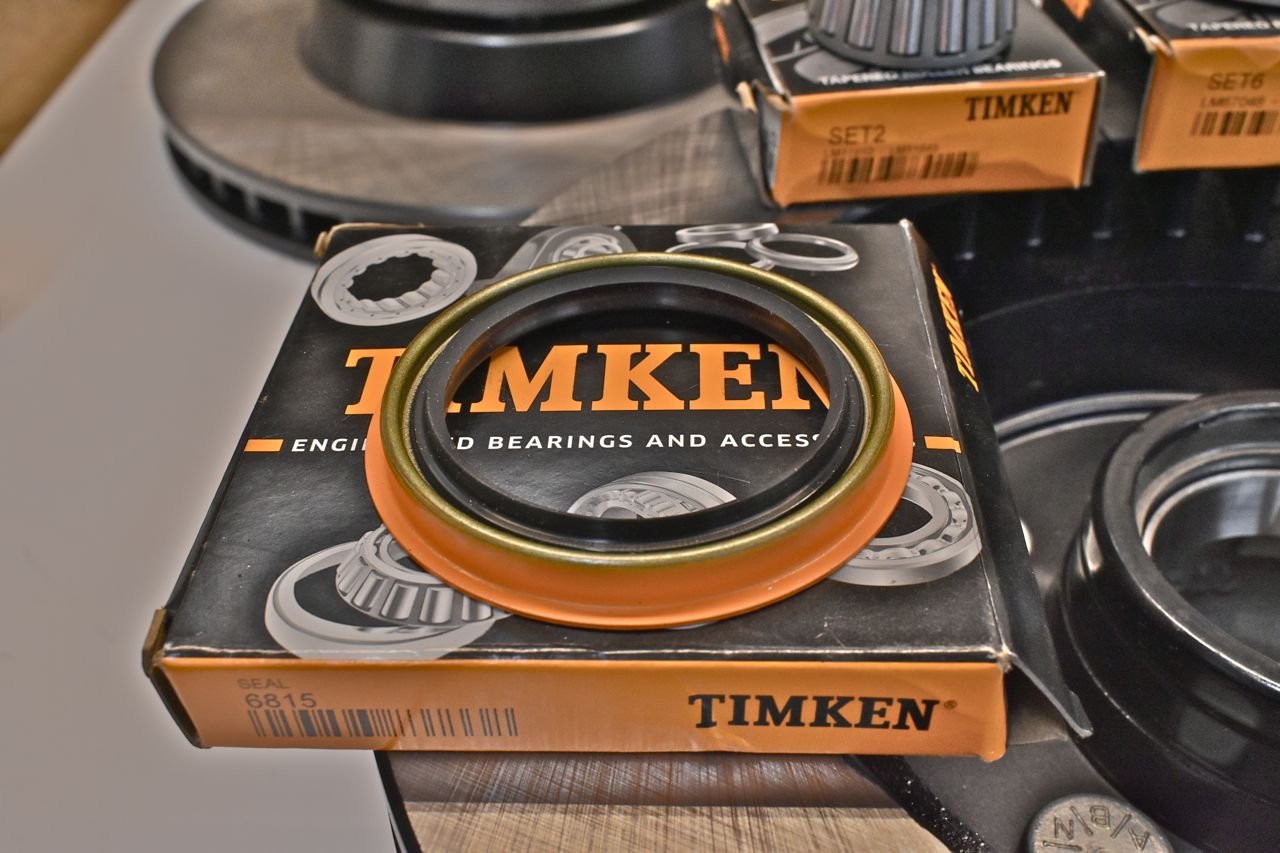

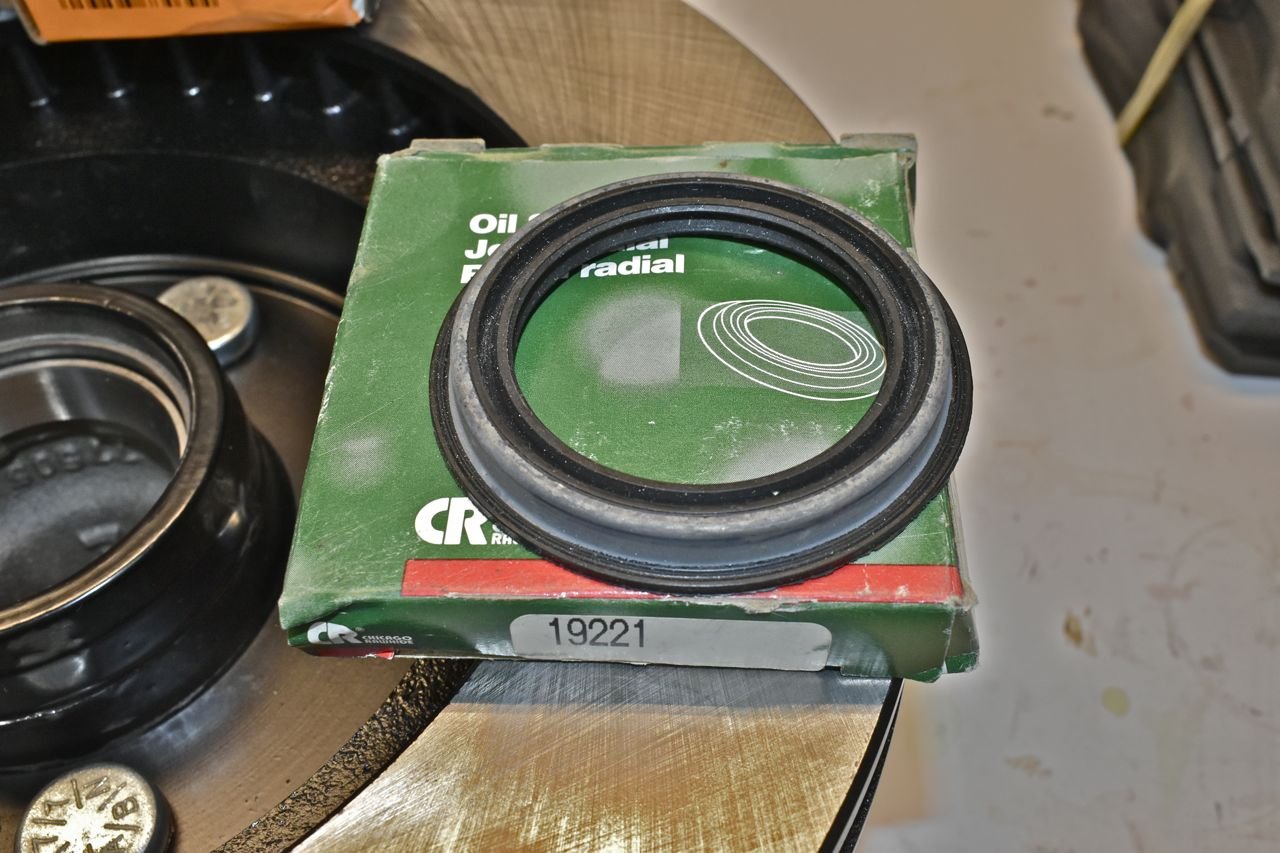

For the seals, Rock Auto had a clearance on these CR seals. I think they were 50 cents each and I bought a Timken to compare.

Turns out the sealing lips on the CR seals are more defined and in my opinion a better seal than the flashy Timken ones.

Interesting.

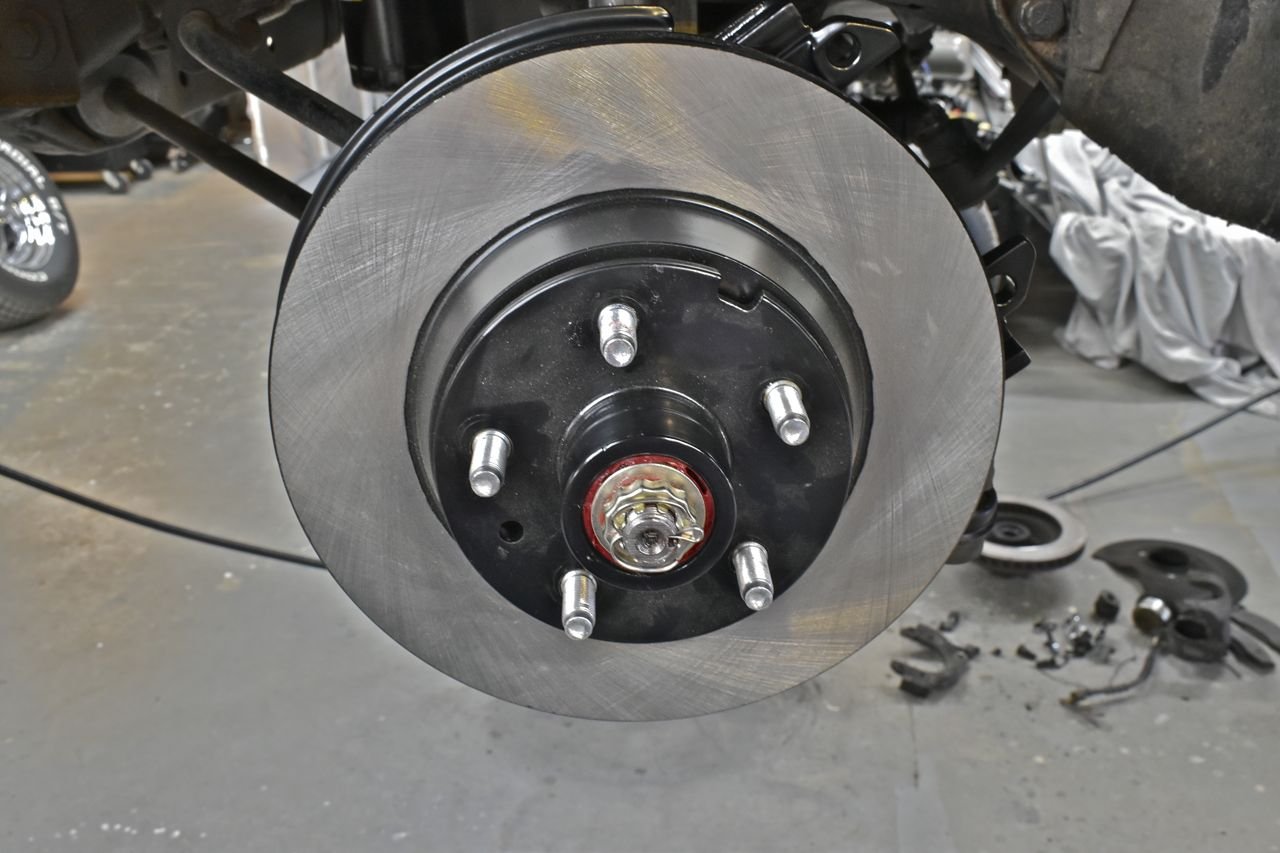

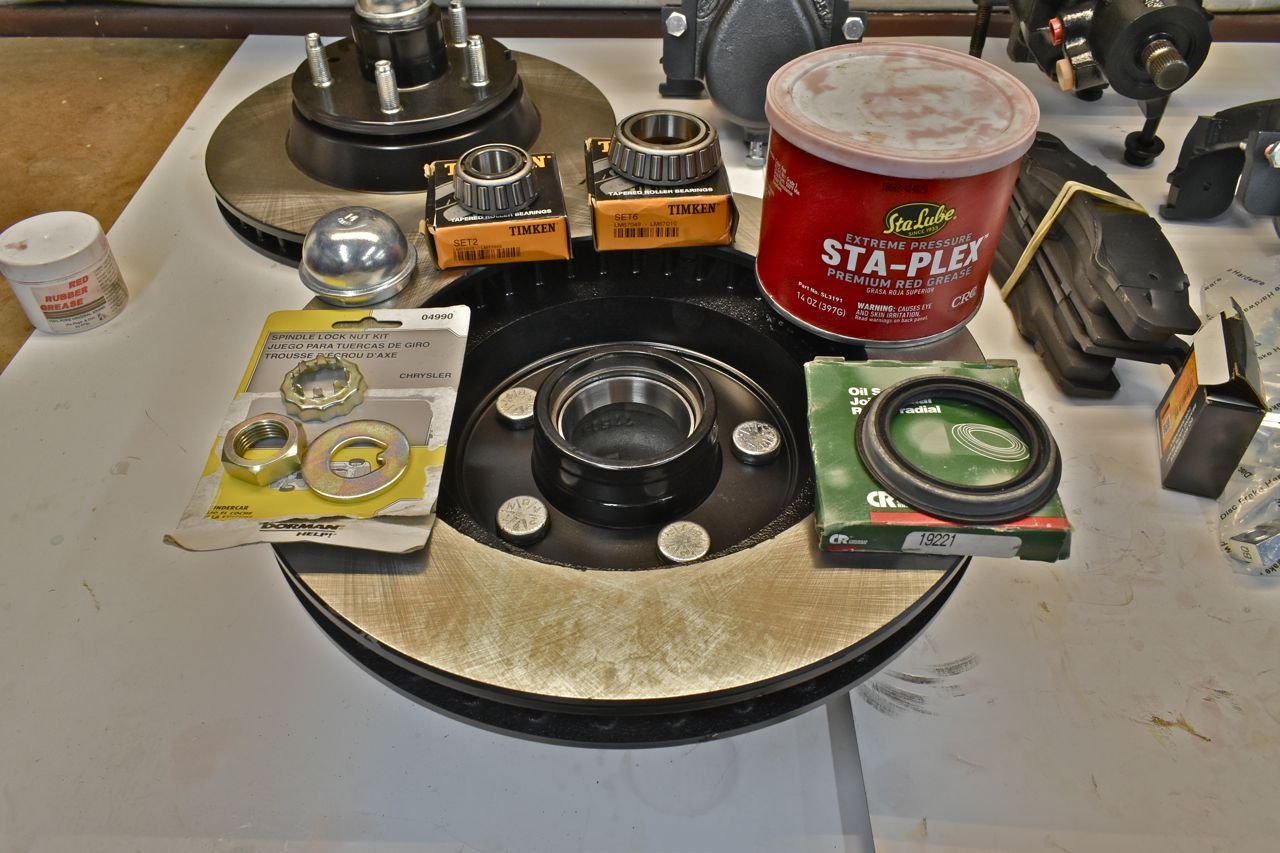

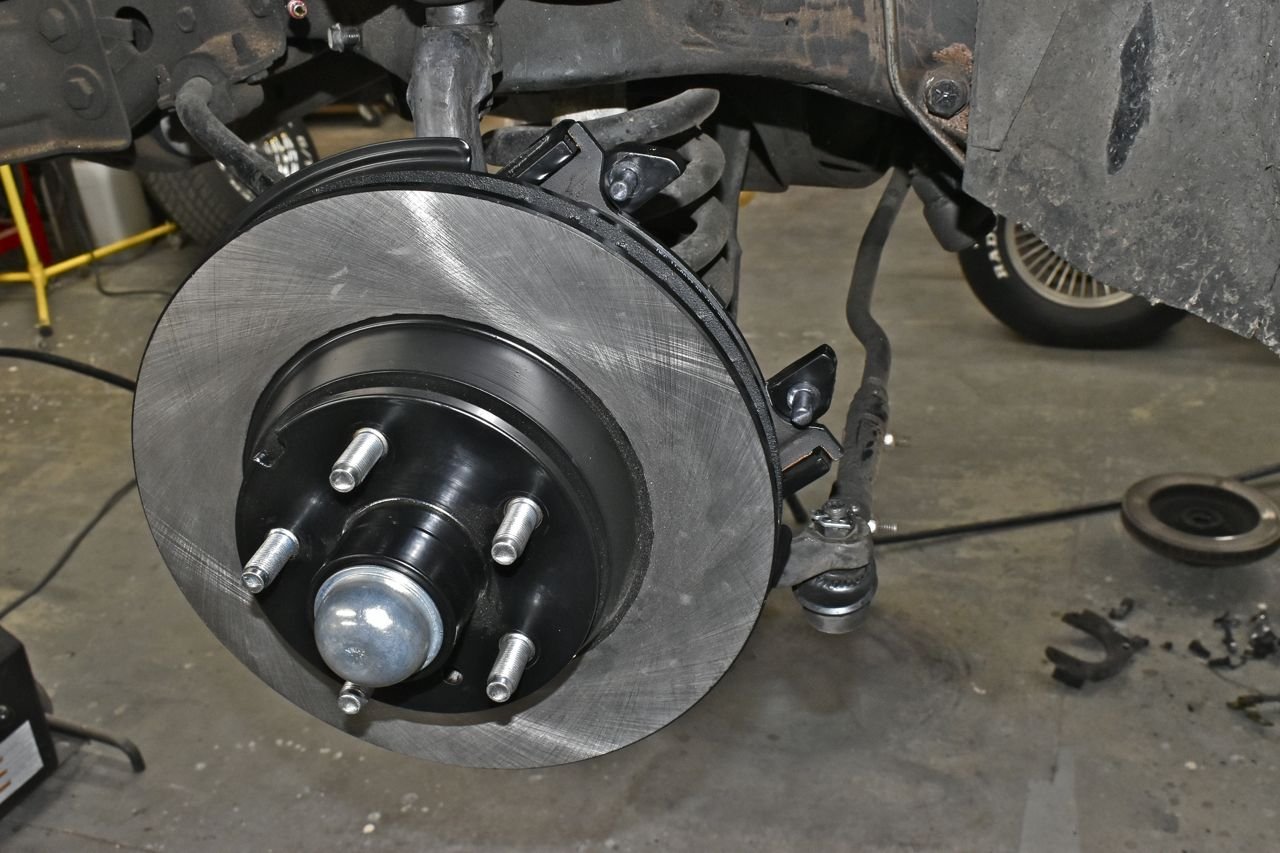

Here's the final round of parts going on the rotor assembly.

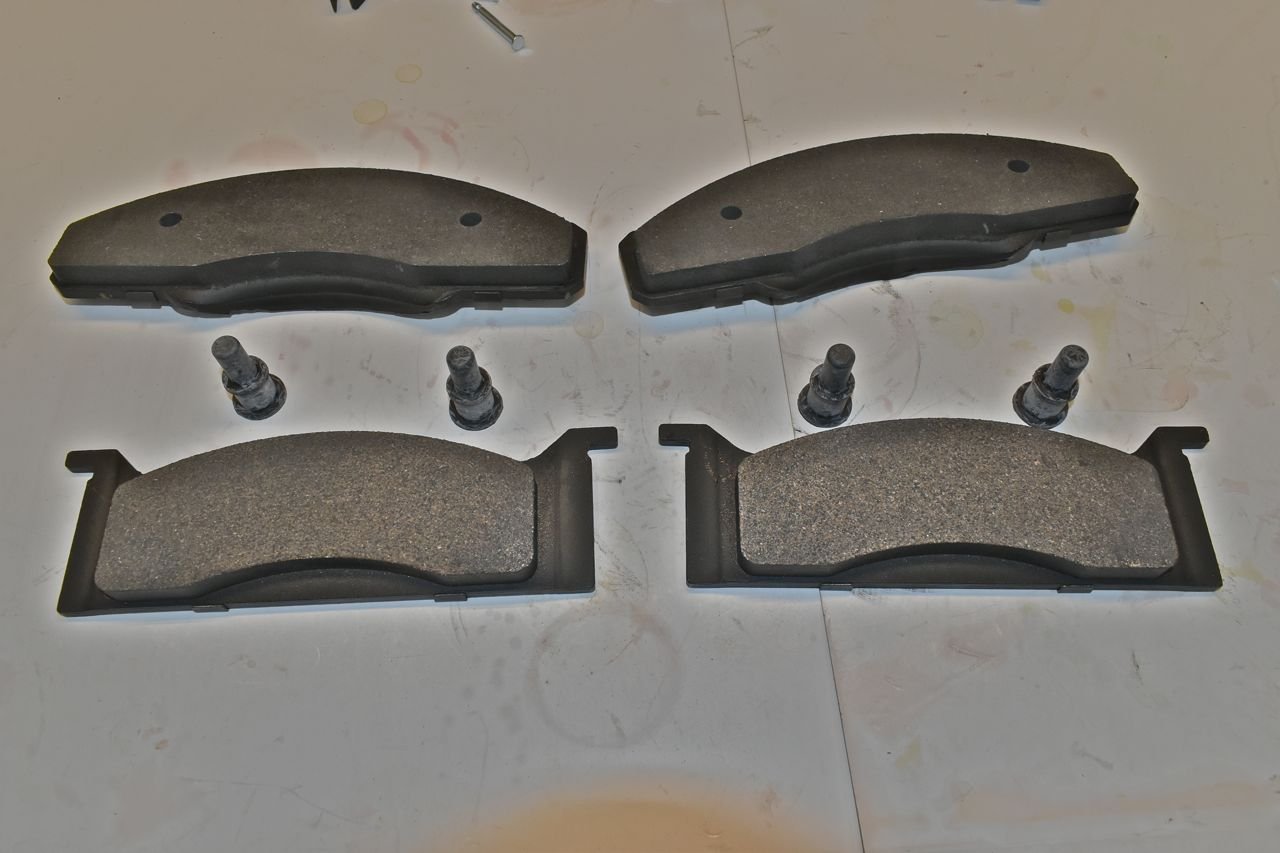

The inboard pad goes in first then the boots slide in.

A little grease on the boots helps them slide right in.

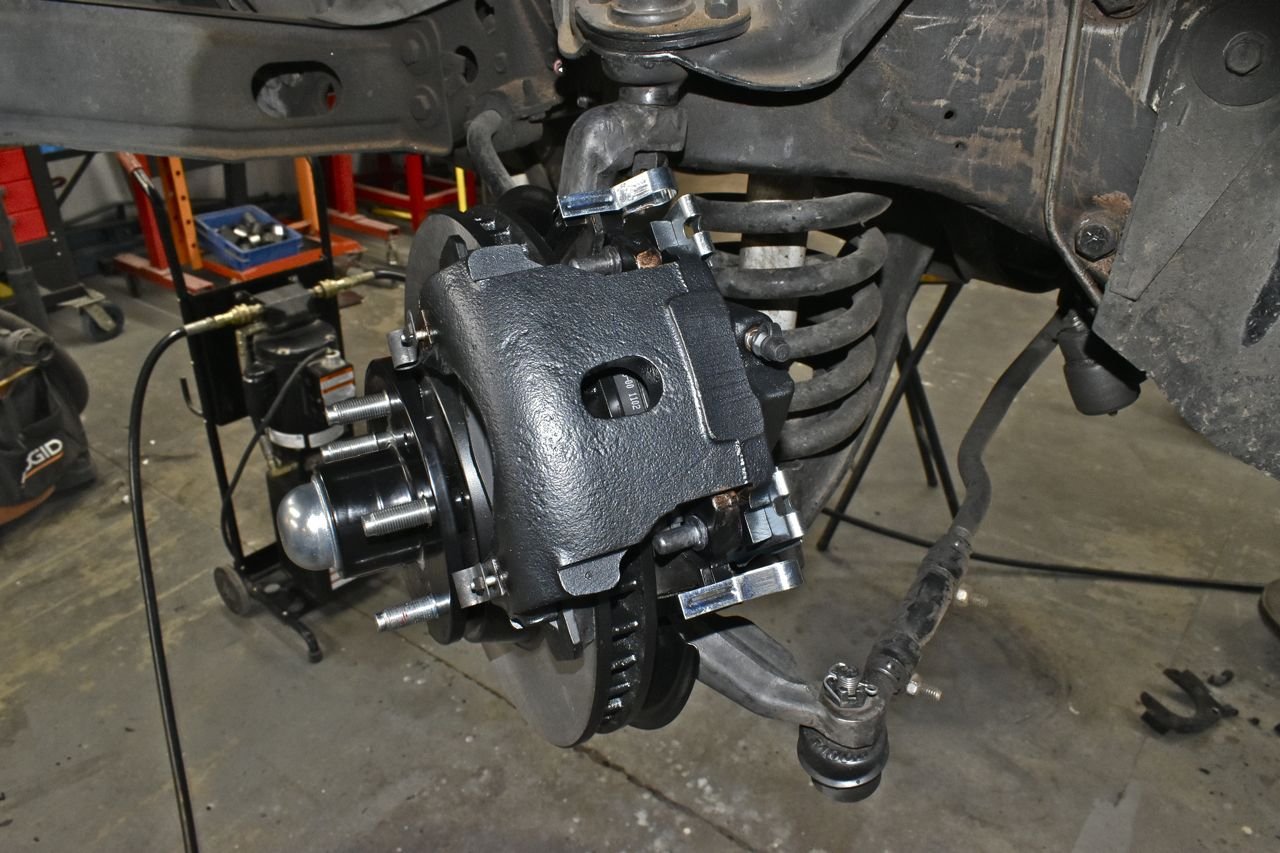

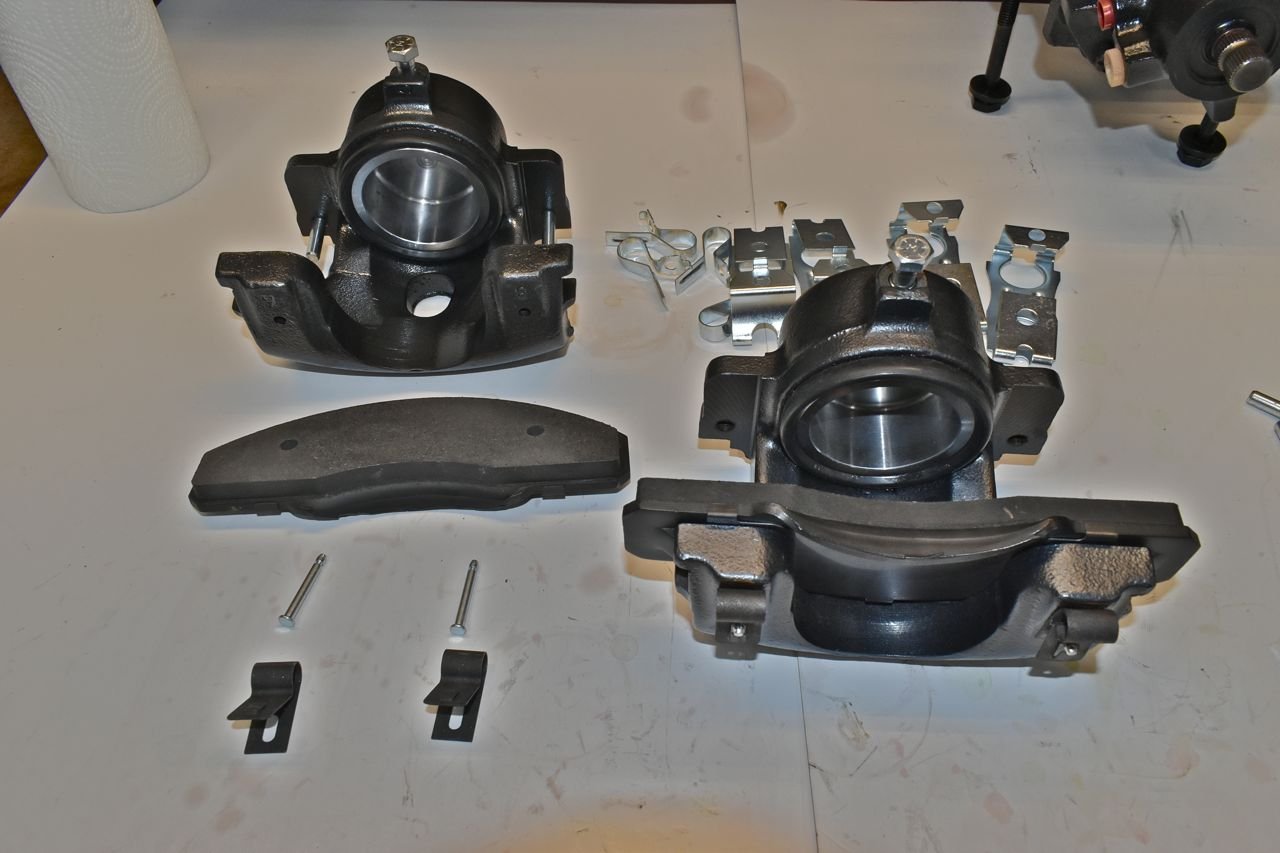

Assembled the outboard pad onto the calipers.

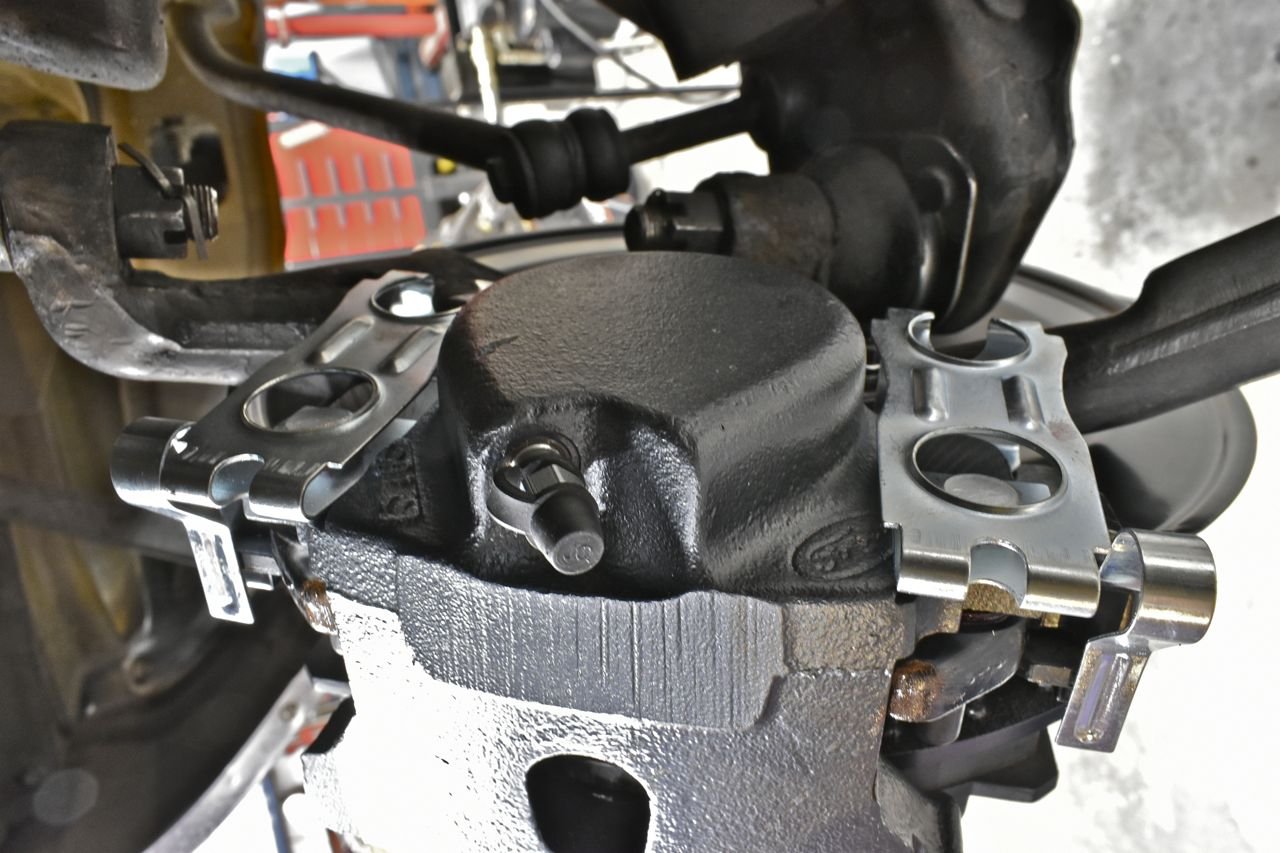

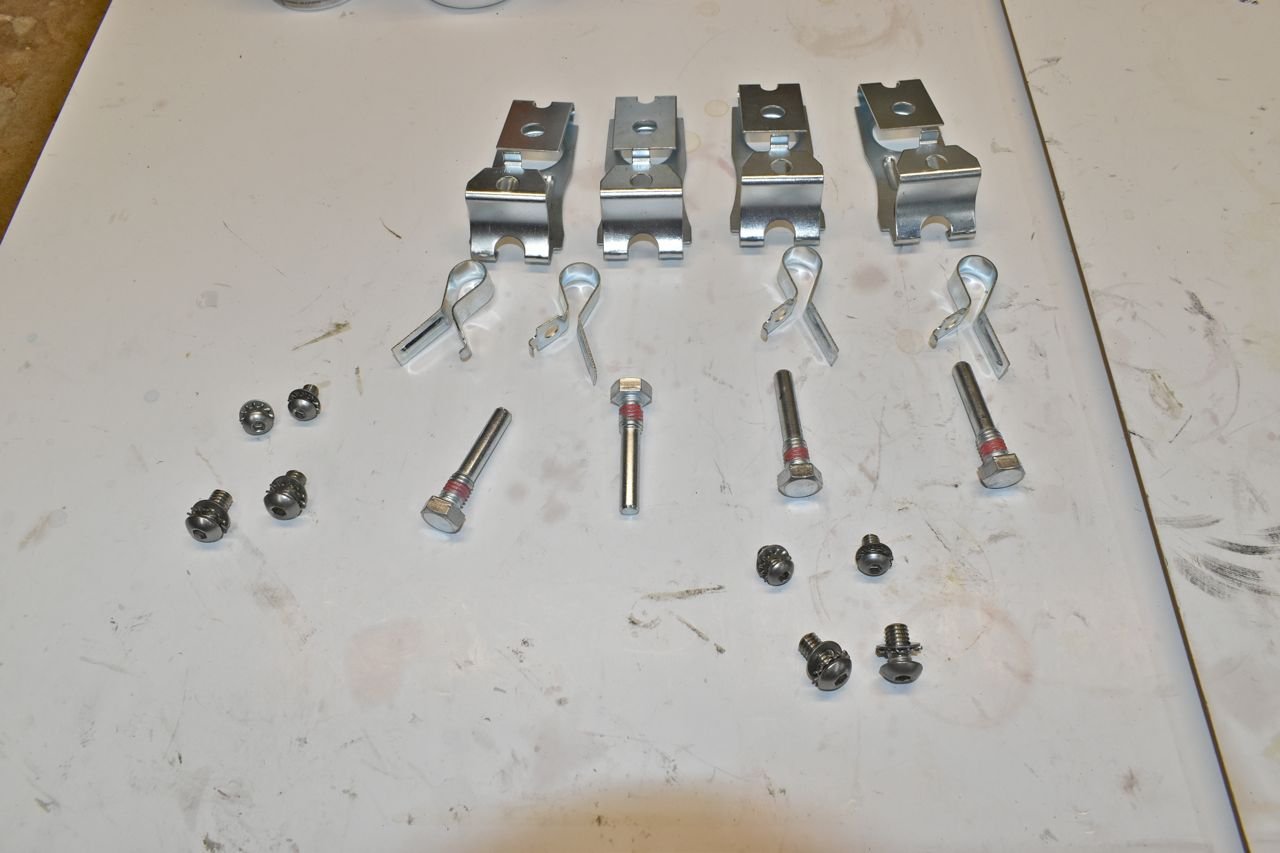

The myriad of anti-rattled clips that go on these brakes.

This is a rather overly complicated and cumbersome disc brake arrangement.

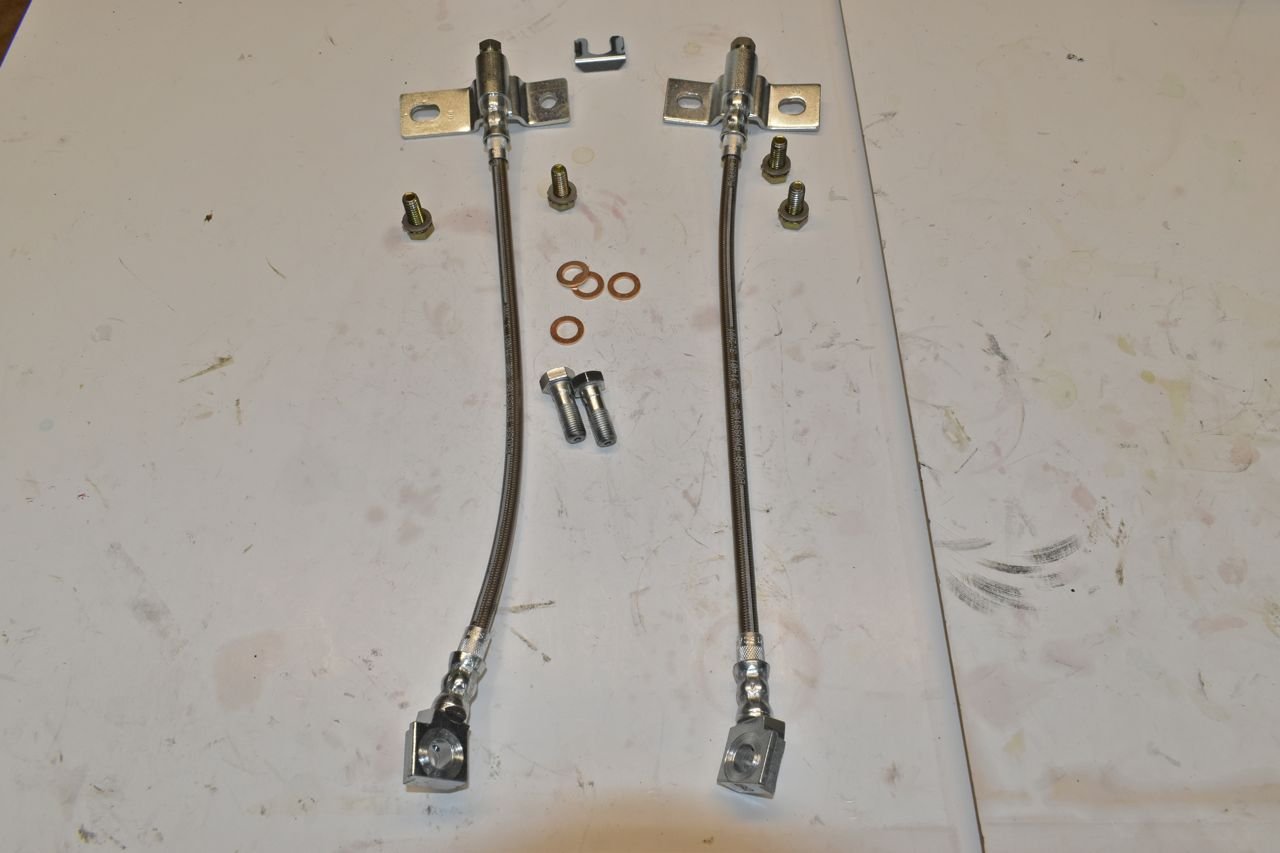

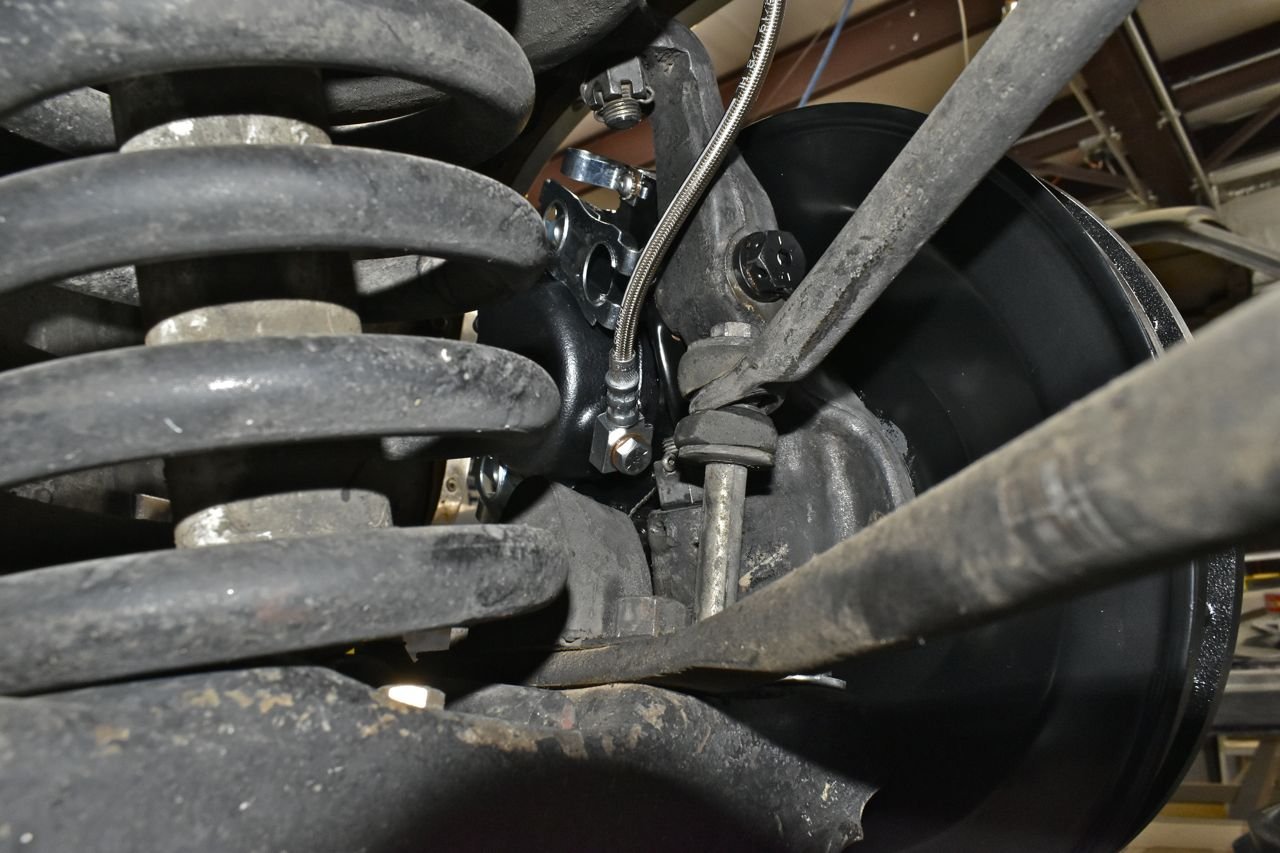

New front hoses.

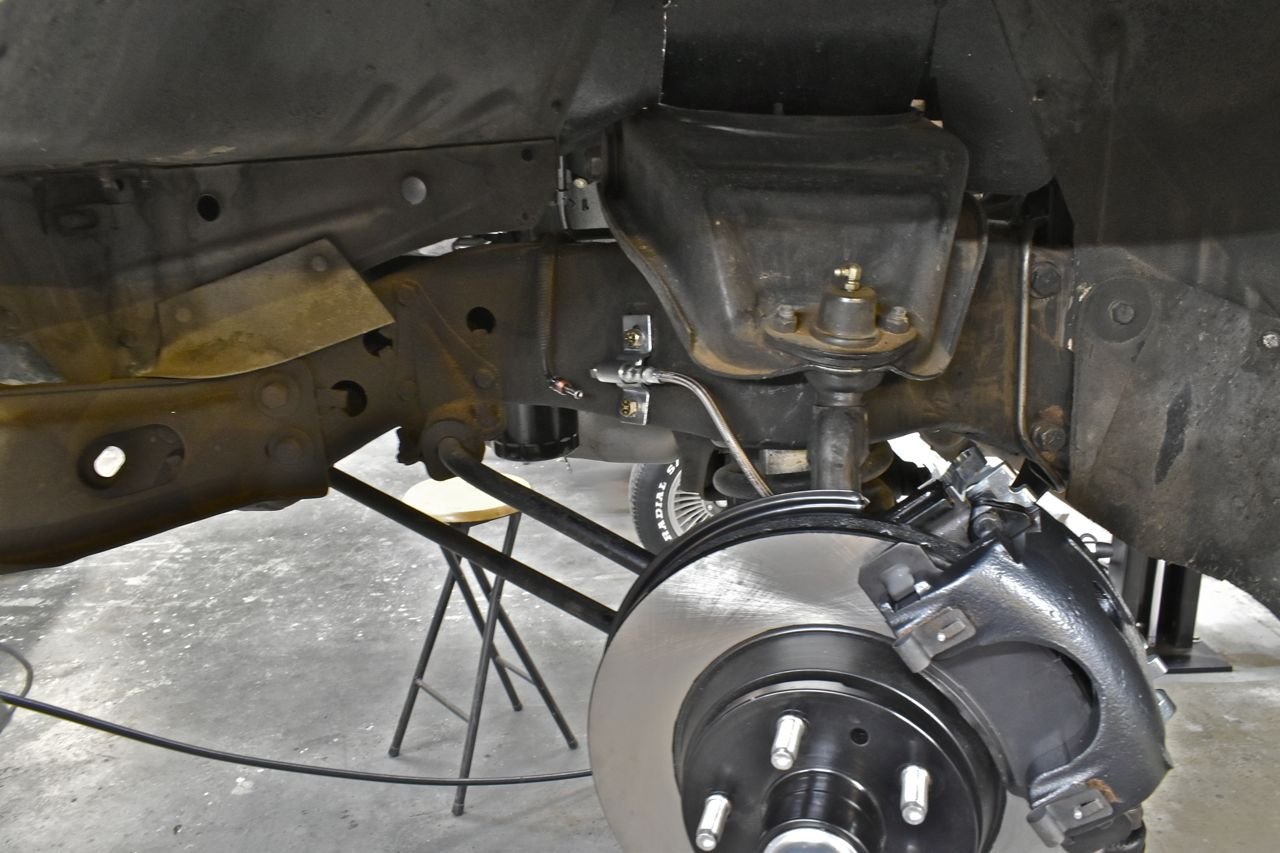

Those hose bolts are a bit of a pain to get to.

I've assembled both disc brakes and now it's time to make some hard brake lines.

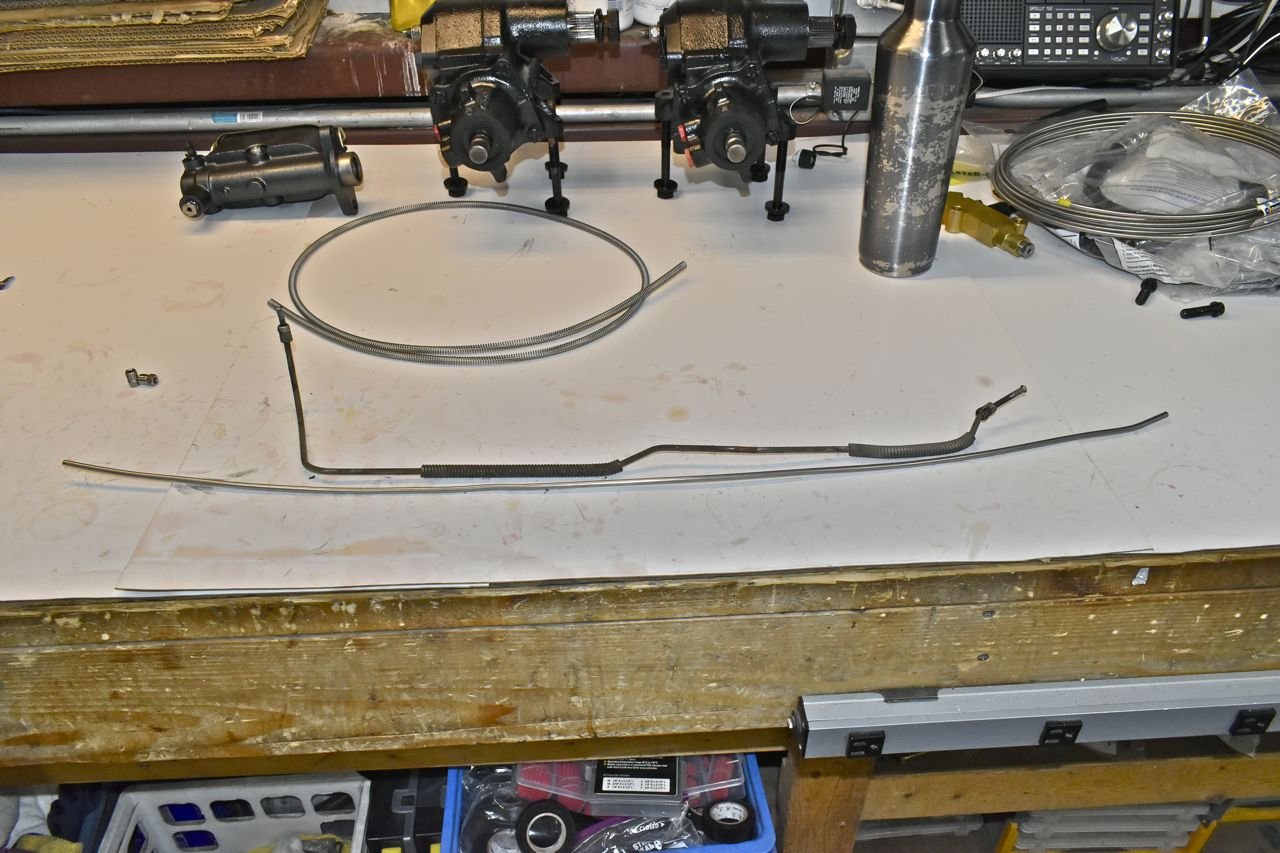

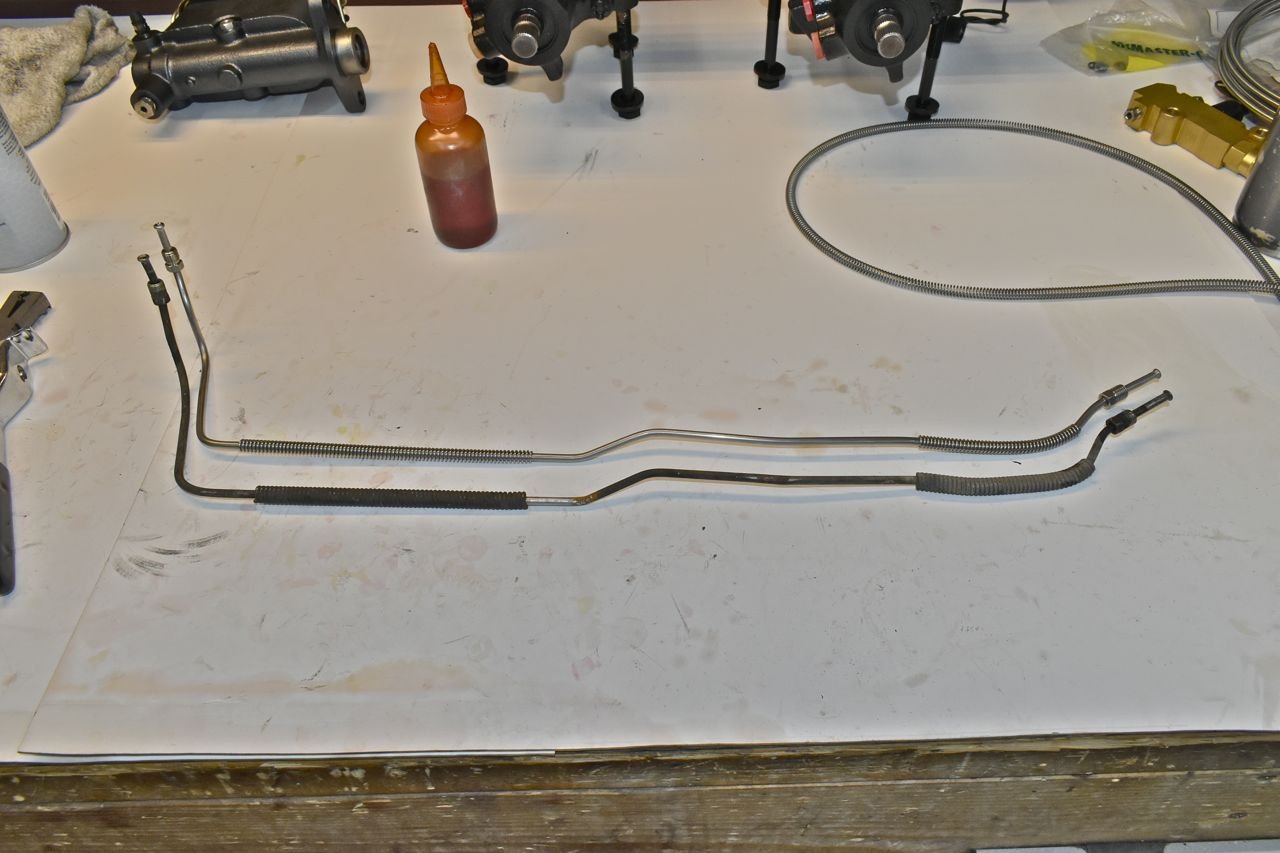

I'll do the easy ones first, the rear axle lines. I start with a section of 304 stainless line, stainless guard spring and an assortment of 304 tube nuts and go to town.

I've covered how I make these lines in other threads, so I'll just show the results. Trust me it's tedious.

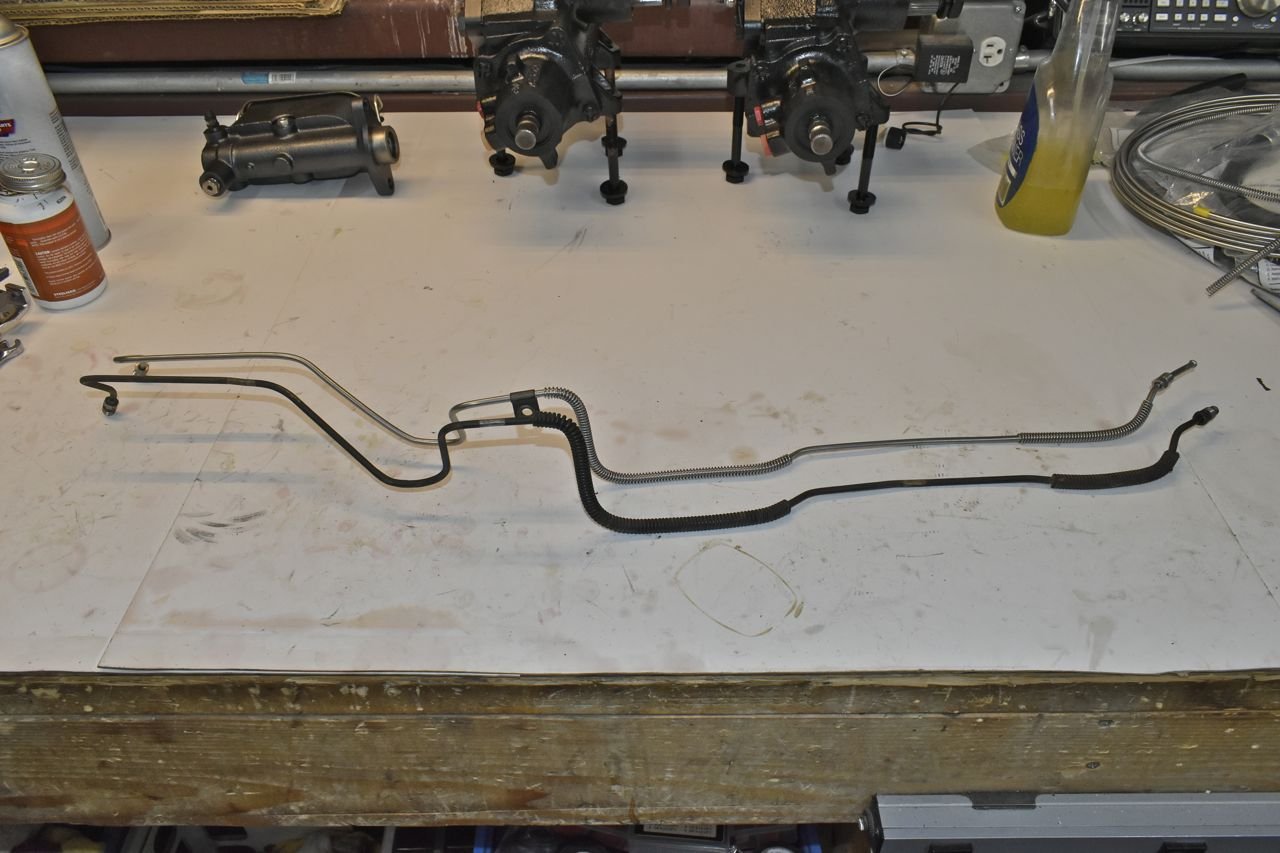

The other side of the rear axle line.
