Transmission (Dual Range C6) Rollerization and Build up - Tear Down Part I

Hi all,

Thought I'd share pics and information on a build up of a 1966 C6 transmission I've completed. The intent of this is to show it's really not that bad to rebuild and/or modify a transmission. Hopefully from the plethora of pictures you can get a pretty good idea of whats involved. As always there are seven ways to Sunday to do something. This is just how I did it and is no way meant to be the best.

In this I chose to break this up into 3 major parts/threads and then later a follow up. The first part is just tear down, the second will be the modifications of which if you just wish to do a factory rebuild just skip this section. The third part will be assembly. Later I'll do a follow up once the engine is back from the machine shop and the car reassembled and the transmission shift points and line pressures (quality of shift) are fine tuned.

OK enough of all that here's my starting point:

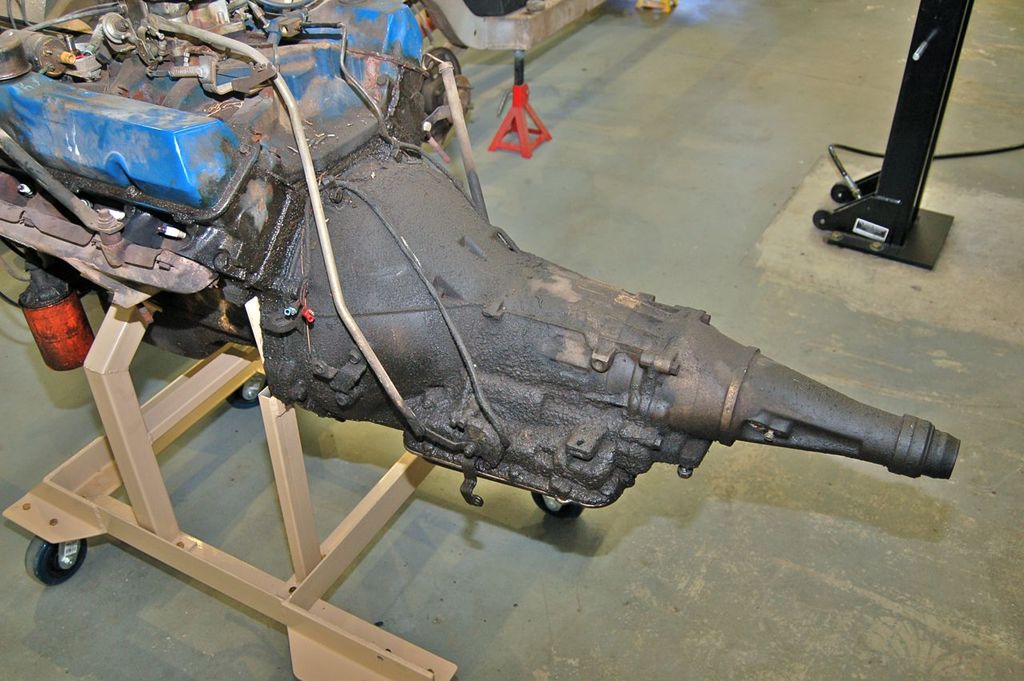

The trans is behind a low horsepower 390 (2bl, single exhaust, "small cam", lower compression, etc) with the technical designation PDD-B model (column shift) 1966 dual range.

First thing I wanted to do was build a proper stand for ease of workability. While you can rebuild one on a bench or I've even seen folks use an old wooden chair with a hole through the seat and the transmission mounted to it, I wanted something just a tinge more elegant and easier to access all sides.

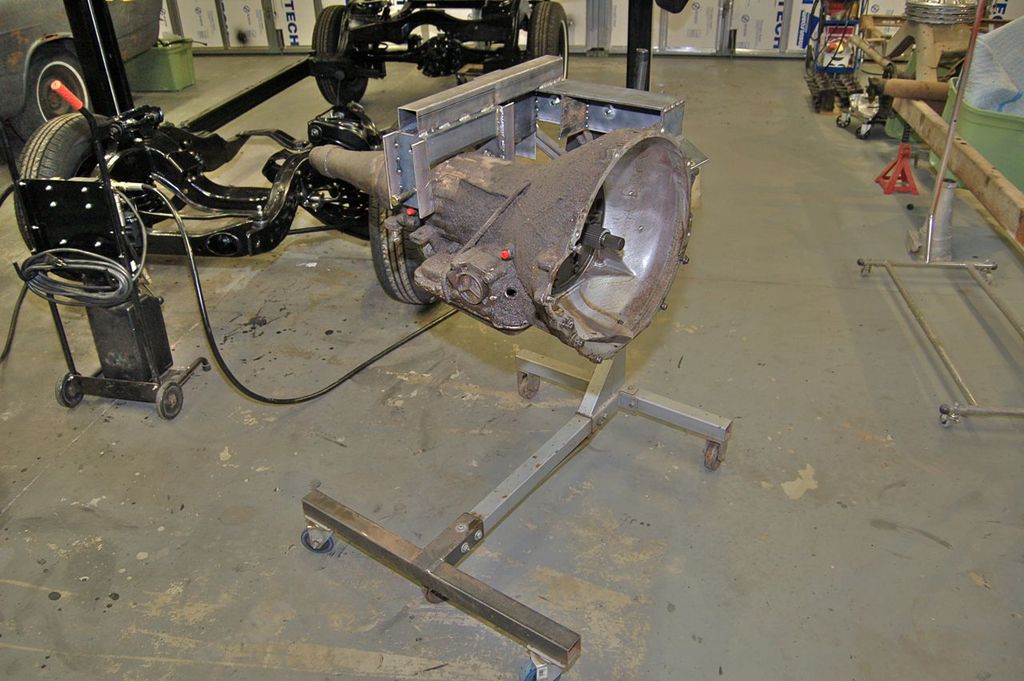

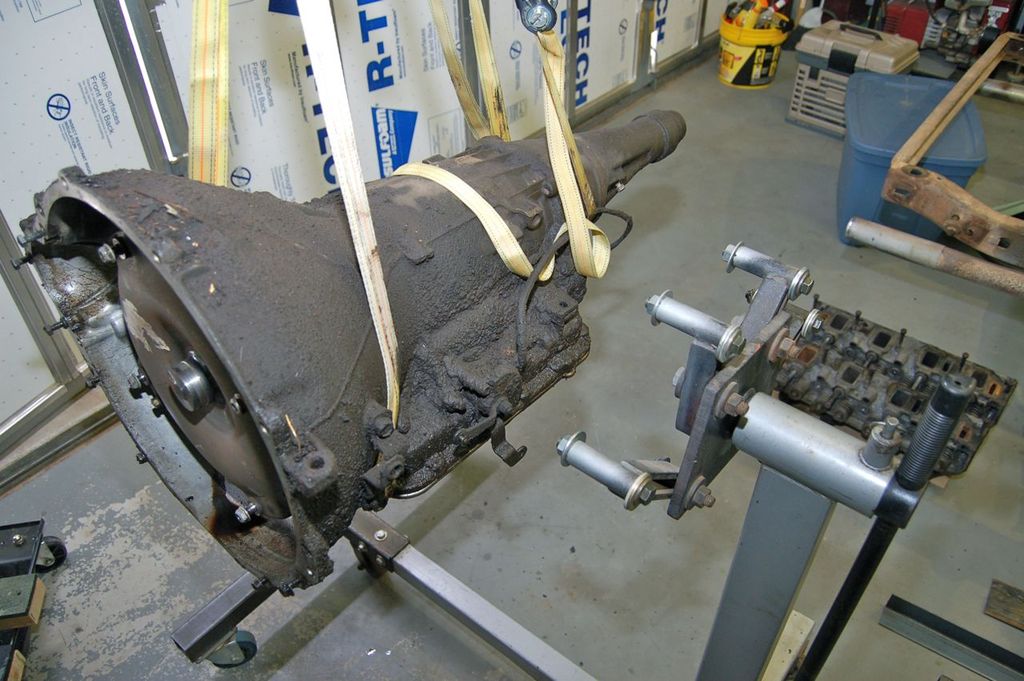

With some scrap pieces of steel from previous projects I was able to contrive this and use my engine stand. It's a bit "Erector Set" looking but worked really well. I even guessed really close on the CG, sans convertor, as it's really easy to spin round.

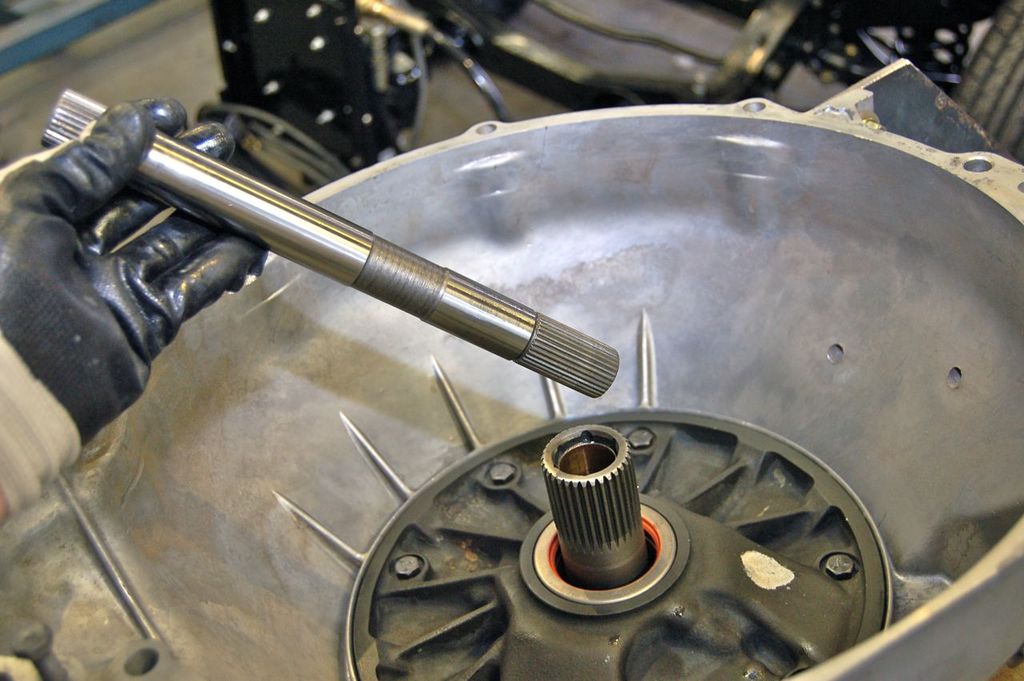

I've cleaned the transmission at this point and familiarized myself with it and we'll start here with tear down. First off remove the input shaft if it hasn't already fallen out on you. It just pulls out.

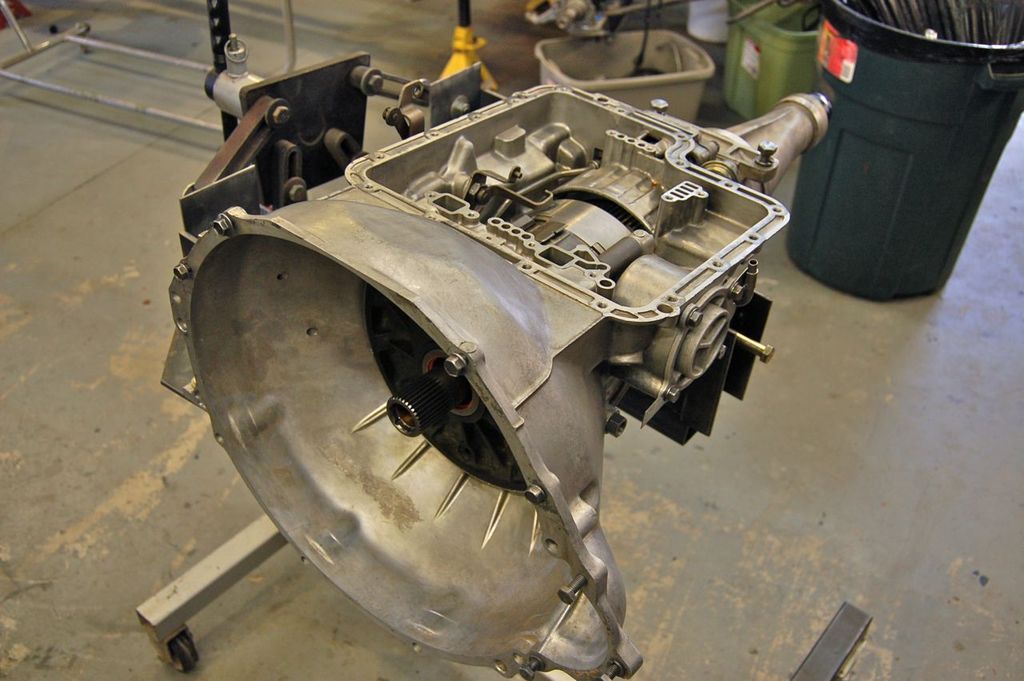

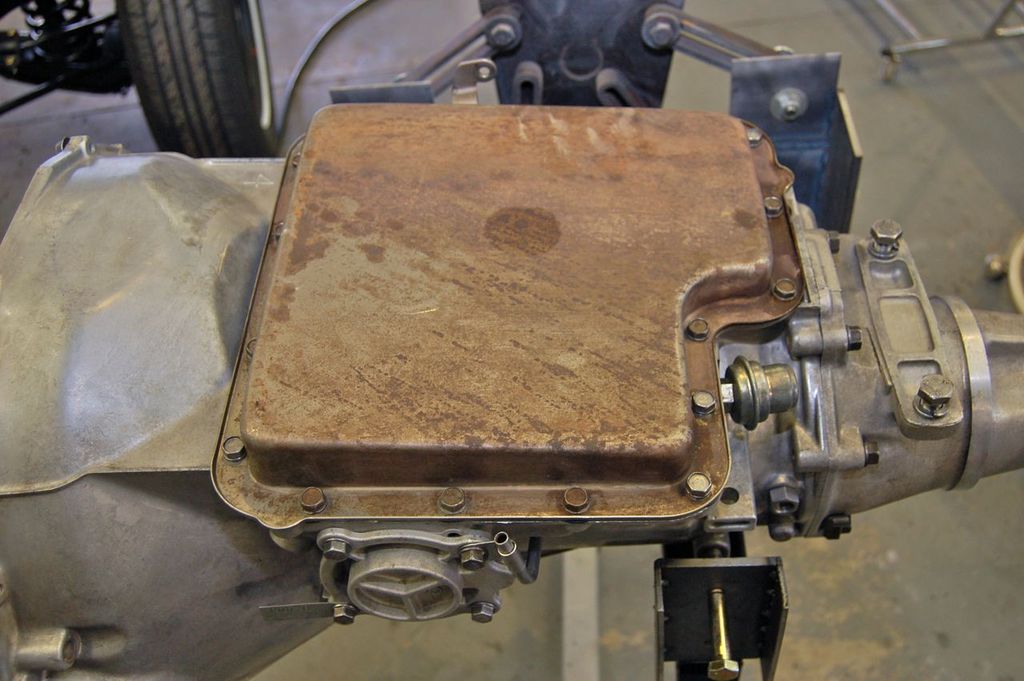

Remove the pan.

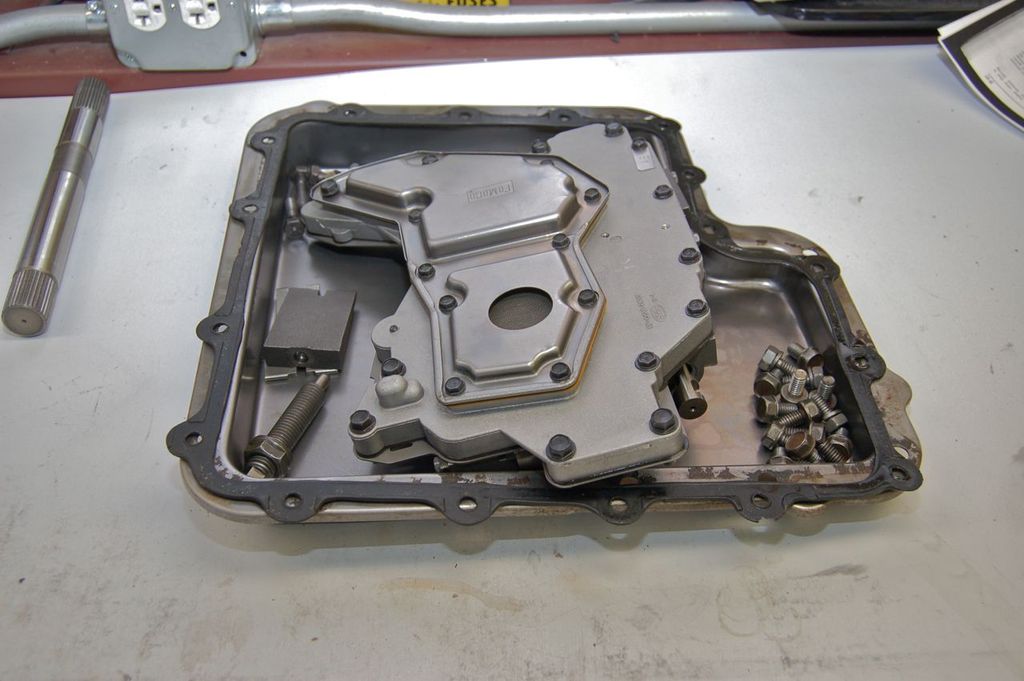

Remove the valve body, just remove the unfastened bolts shown and it lifts out as one piece.

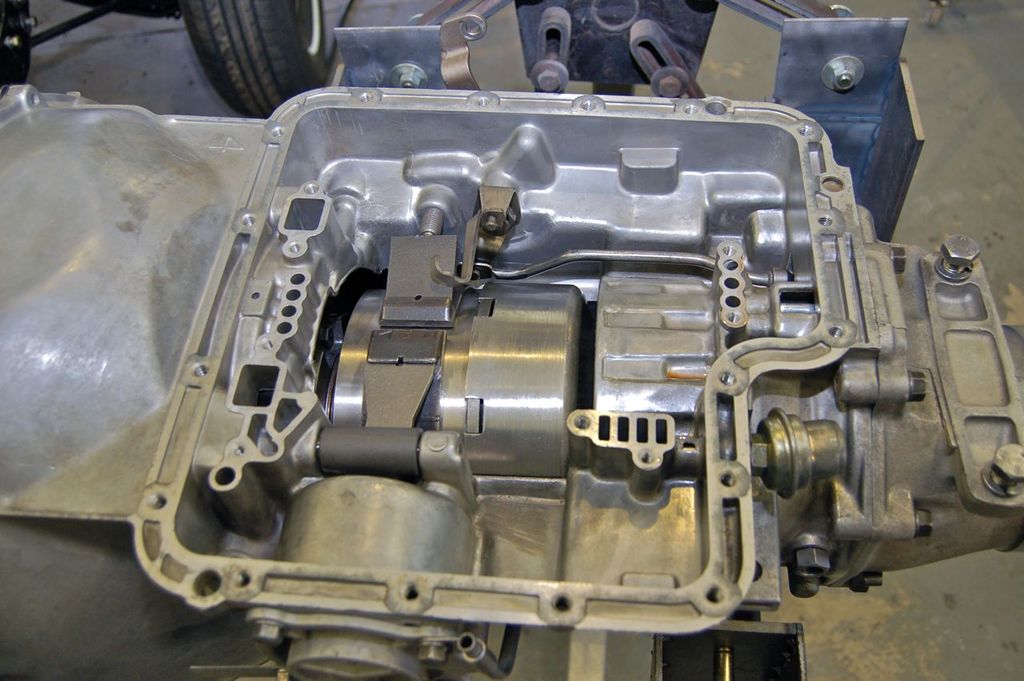

Actually doesn't look that complex even at this point.

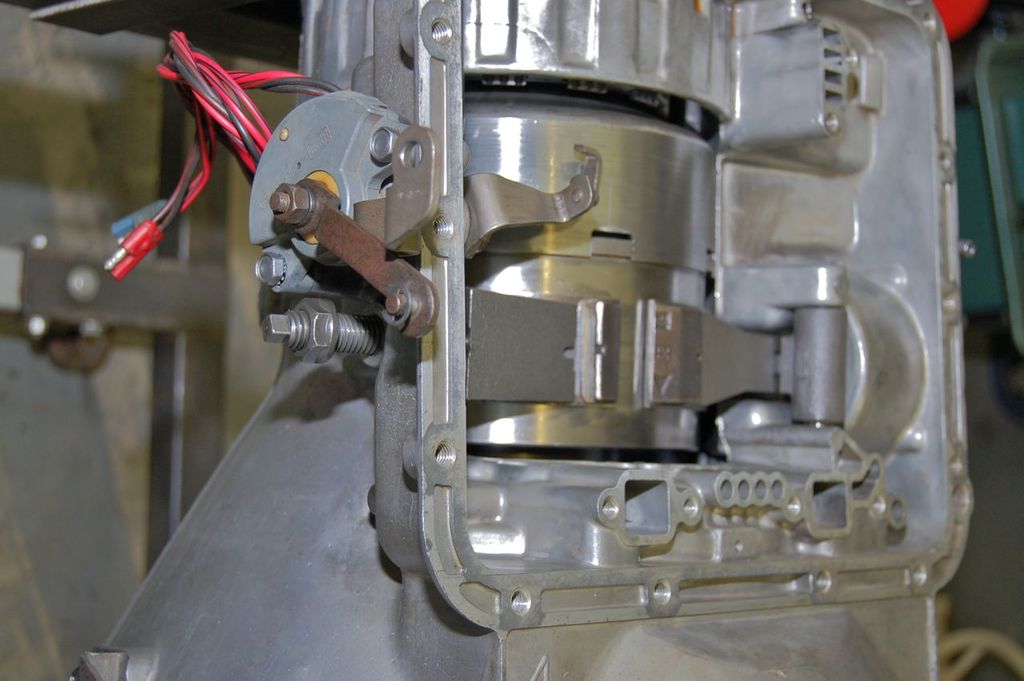

To remove the band forks loosen the jamb nut and the adjuster on the side of the case, the apply forks will then fall free to remove.

The pile of parts slowly grows.

Next remove the bolts holding the pump to the case.

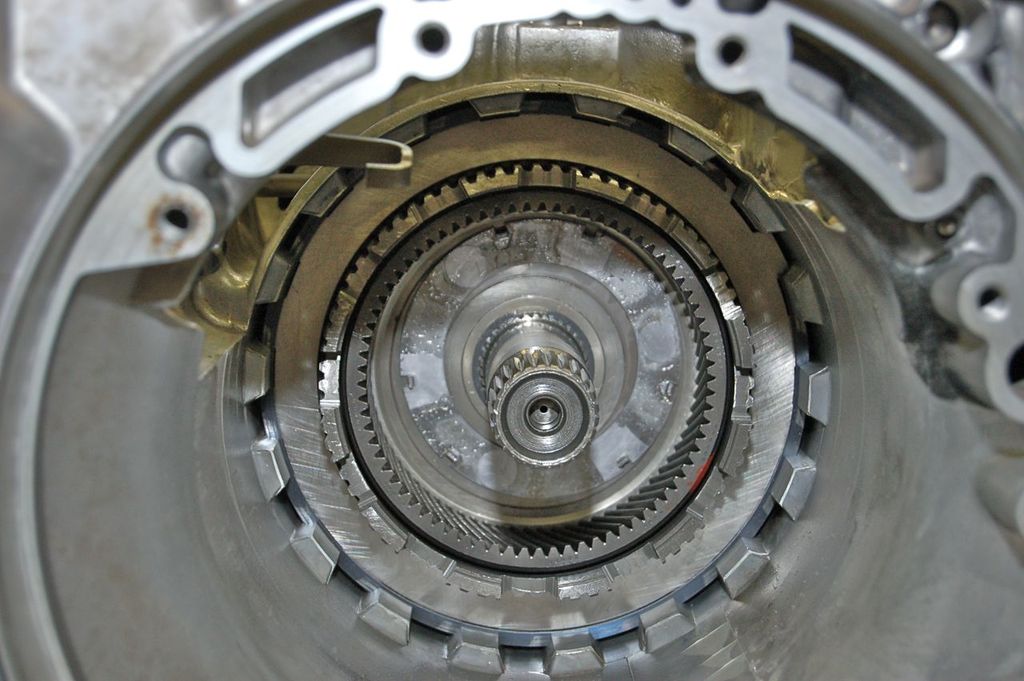

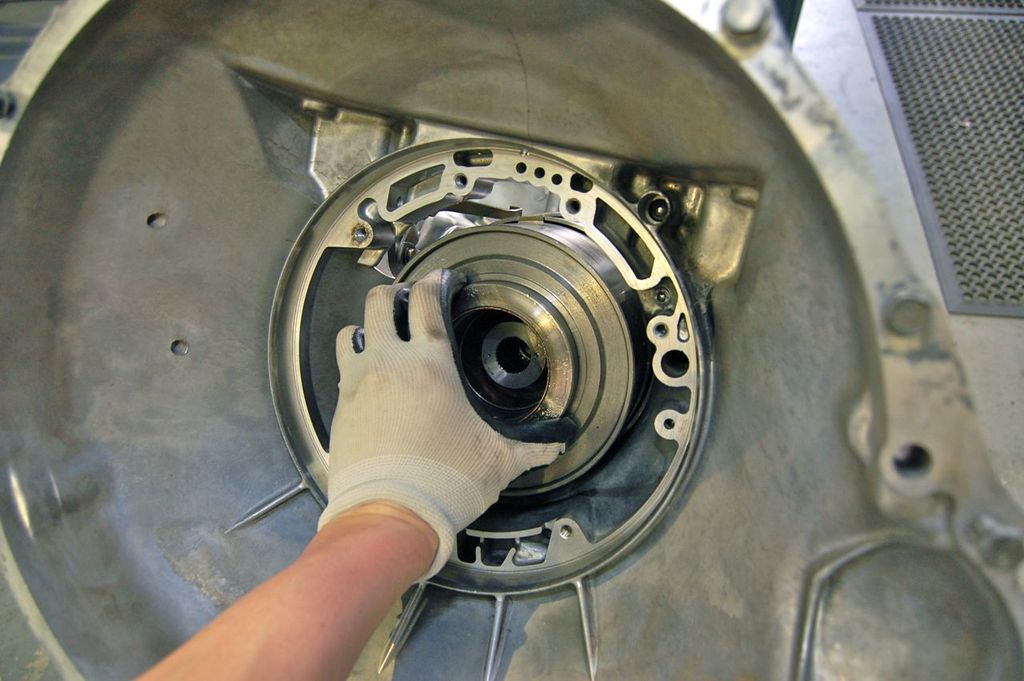

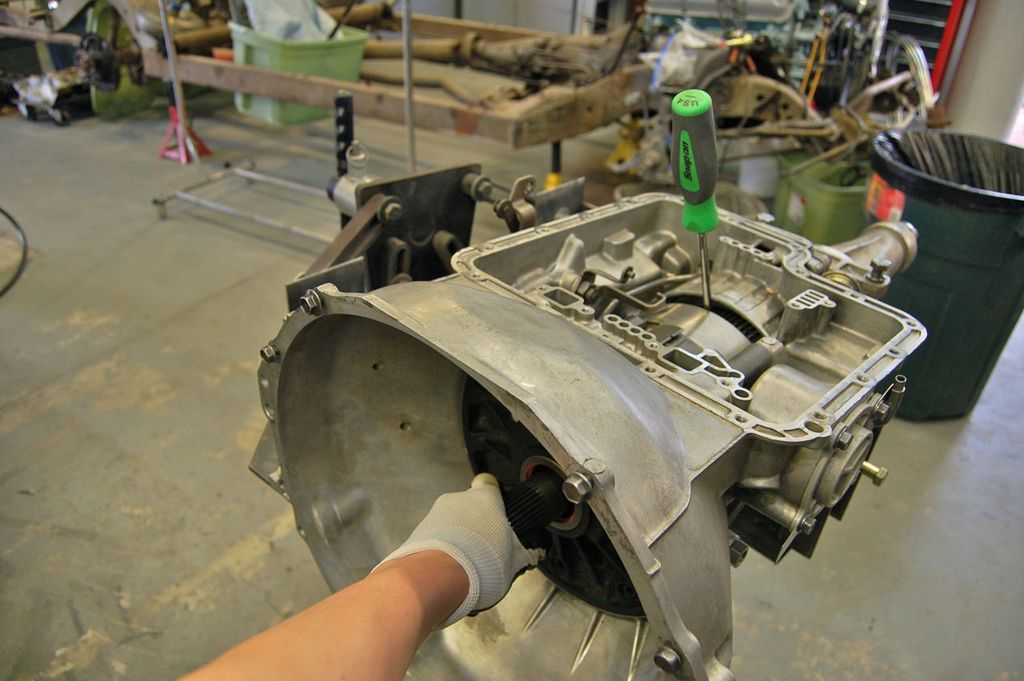

Use a screw driver to push the guts and subsequently the pump forward and remove the pump.

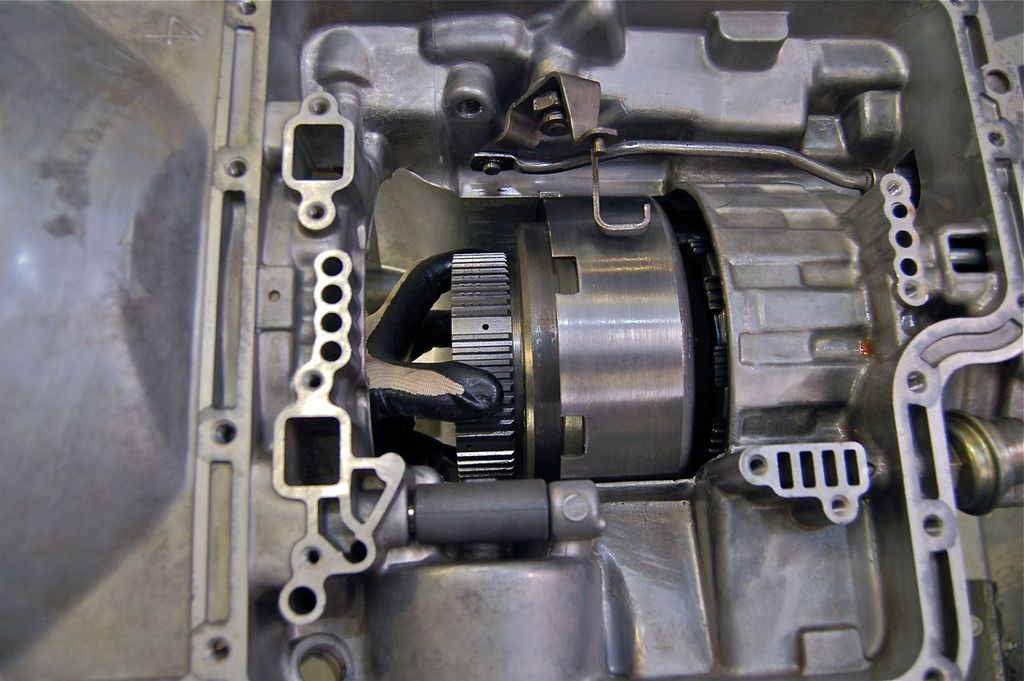

Maneuver the band out through the front.

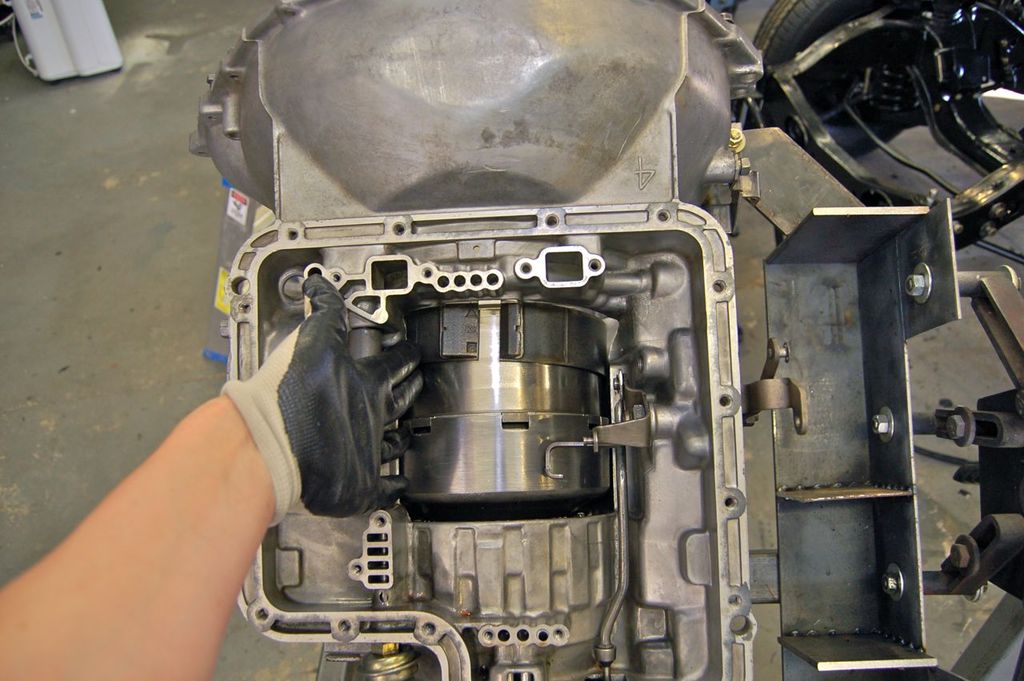

Pull the High-Reverse clutch (aka direct clutch) forward and out. Use two hands as it's heavy.

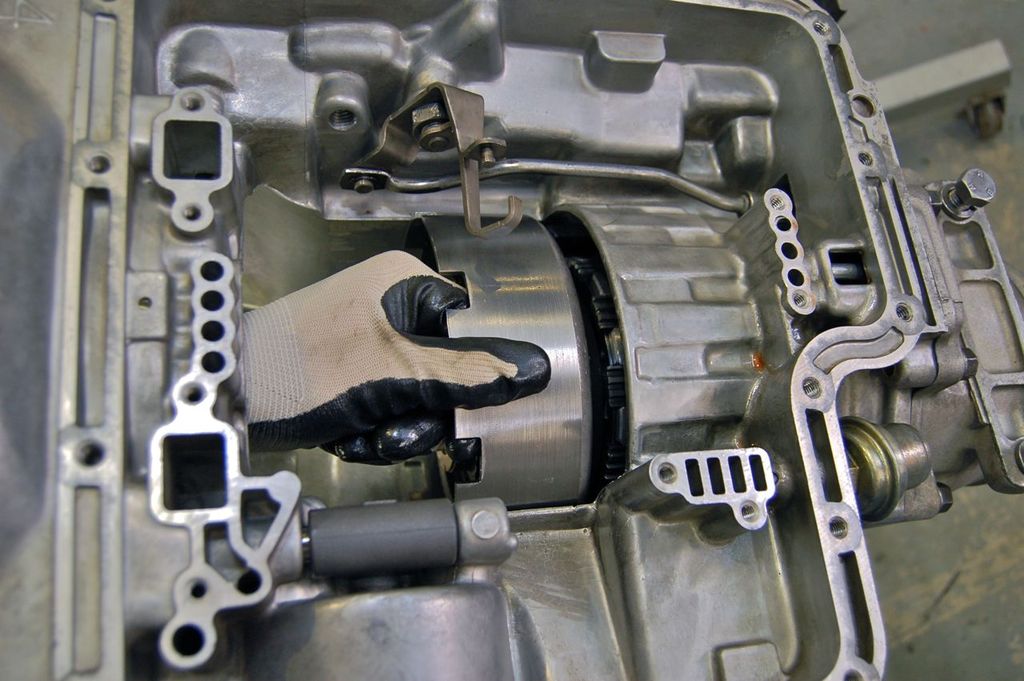

Grab the Forward Clutch and pull that out. Again two hands..

Next grab the sun shell and pull that straight out. Note the forward planetary is still in it and will fall out if tipped so be careful or pull that out first and then the shell.

The parts removed in order.

Remove the snap ring holding the reverse planetary onto Low-Reverse clutch hub.

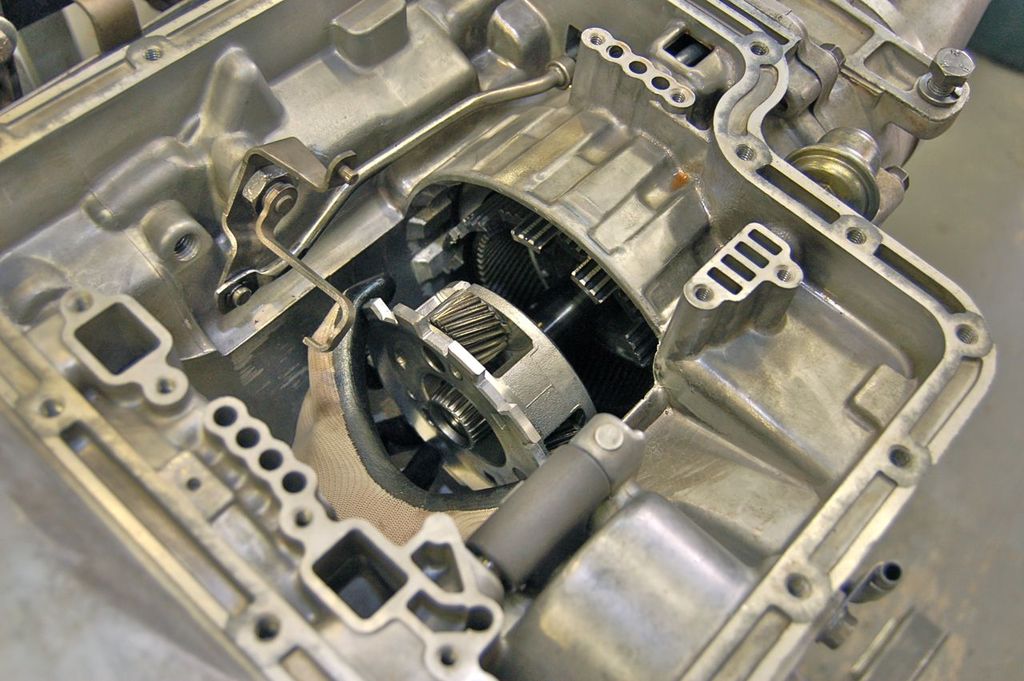

Remove the reverse planetary.

It's hard to see but on the shaft stub against the back hub there is a snap ring holding the reverse ring gear and hub in.

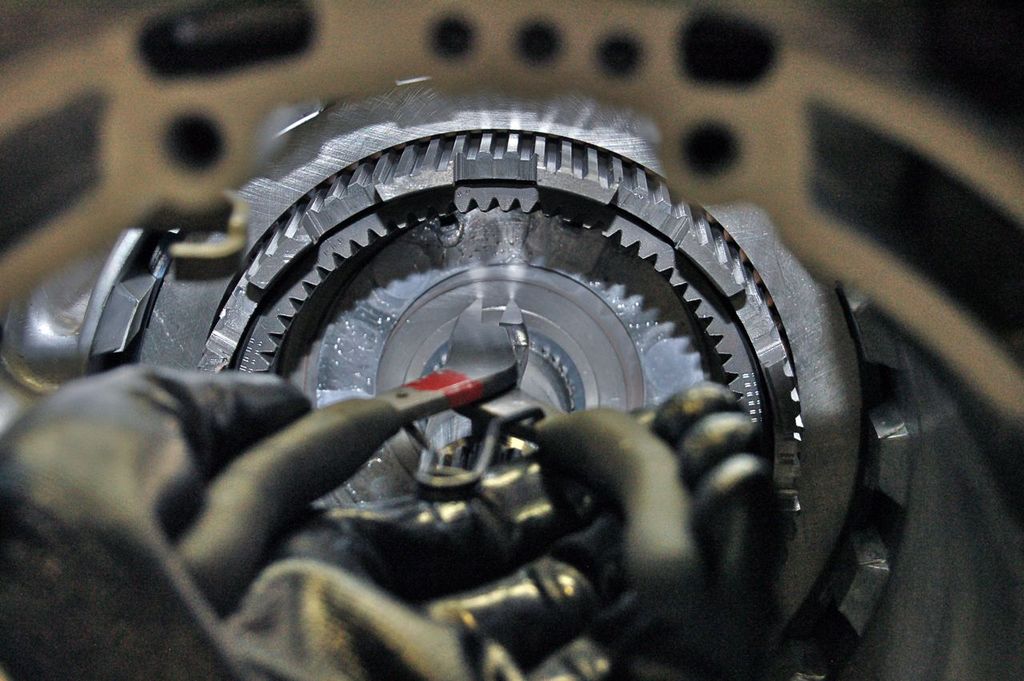

Use snap ring pliers and remove it.

more in part II
